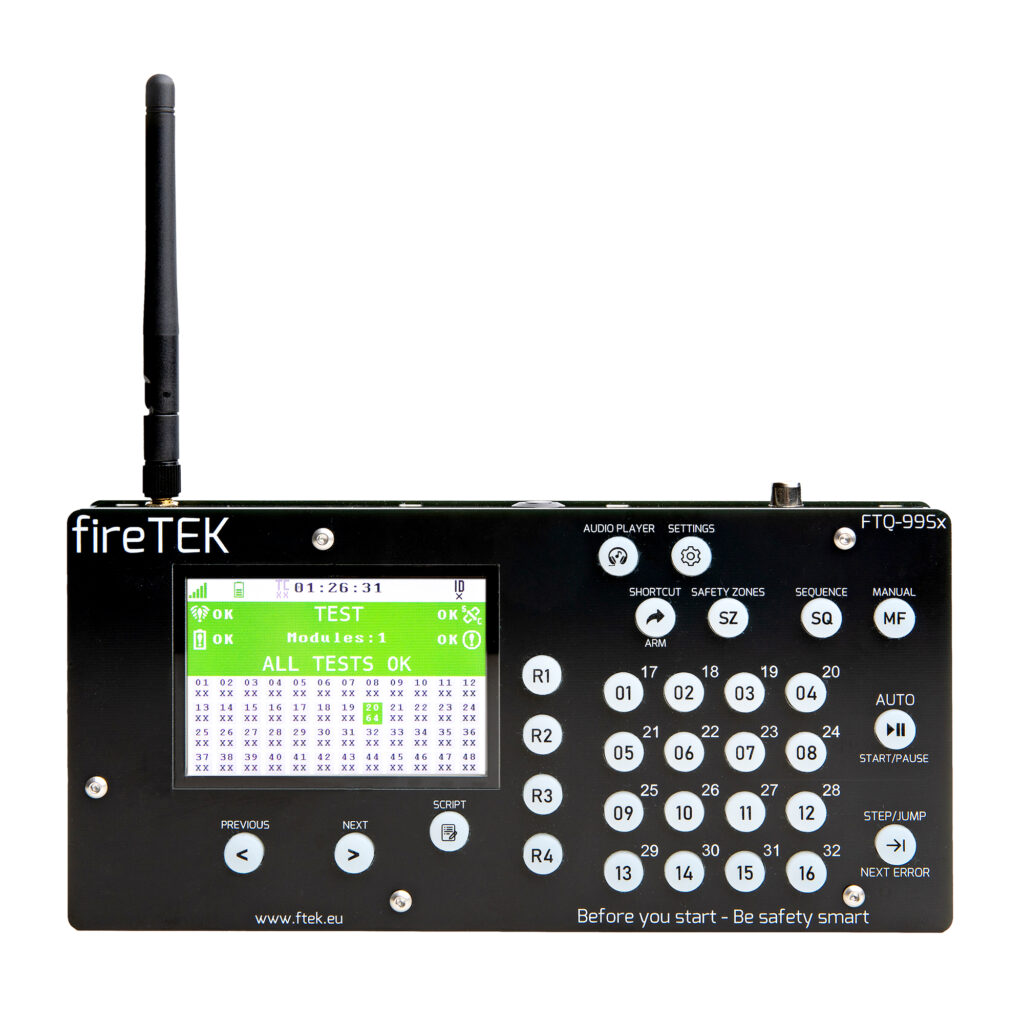

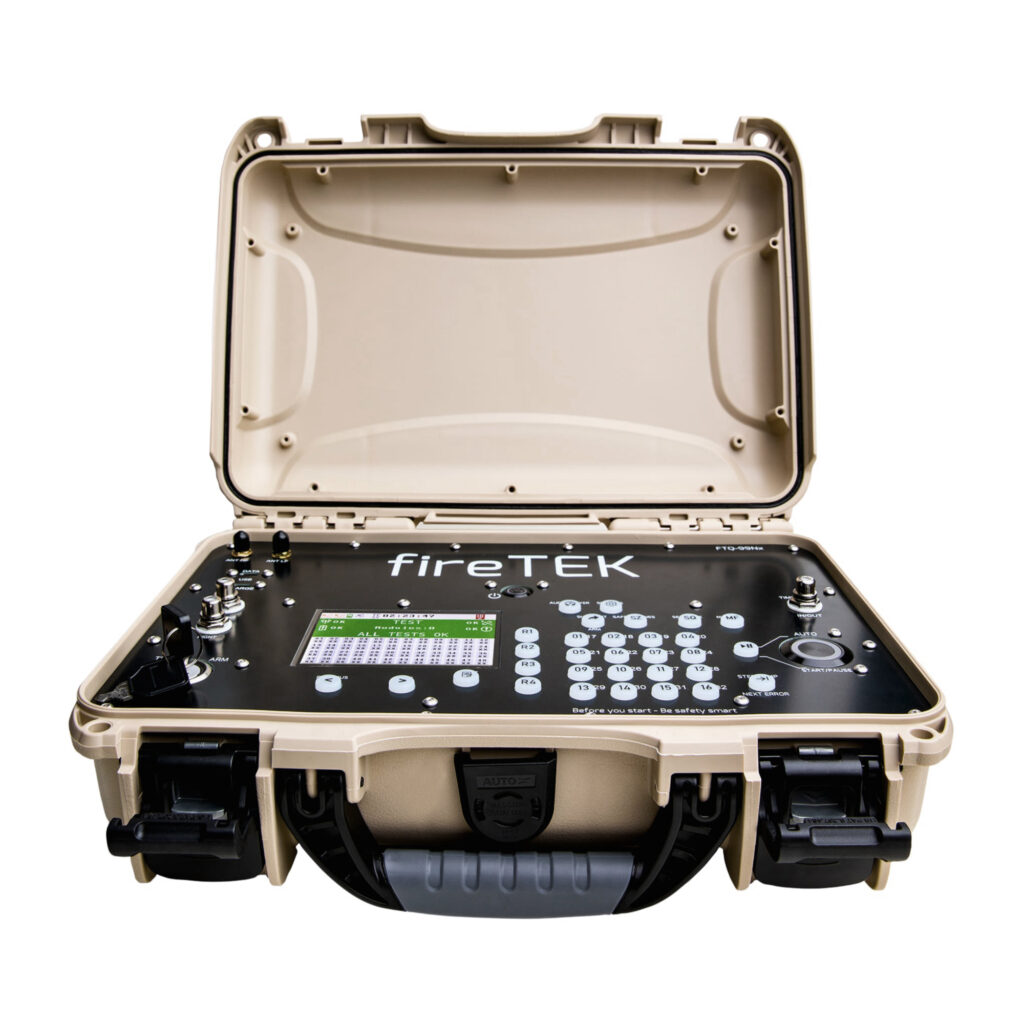

FIRETEK CONTROLLER
- FTQ-99Nx controller
- Bi-directional communication with up to 99 fireTEK modules across the fireTEK wireless mesh network;
- External antenna;
- Internal audio player for both MP3 and WAV with both onboard memory and USB drive capability;
- Receive and generate SMPTE LTC & FSK timecode;
- GPS timing and synchronization;
- Large backlight LCD screen that provides system information, module specific information, real-time error reporting, and functional and operational menus;
- Illuminated buttons providing visual menu and channel status;
- Internal USB rechargeable LiPO battery with 24hr stand-by time;
FIRETEK HANDHELD CONTROLLER
- FTQ-99Nx handheld controller
- Bi-directional communication with up to 99 fireTEK modules across the fireTEK wireless mesh network;
- External antenna;
- Internal audio player for both MP3 and WAV with both onboard memory and USB drive capability;
- Receive and generate SMPTE LTC & FSK timecode;
- GPS timing and synchronization;
- Large backlight LCD screen that provides system information, module specific information, real-time error reporting, and functional and operational menus;
- Illuminated buttons providing visual menu and channel status;
- Internal USB rechargeable LiPO battery with 24hr stand-by time;

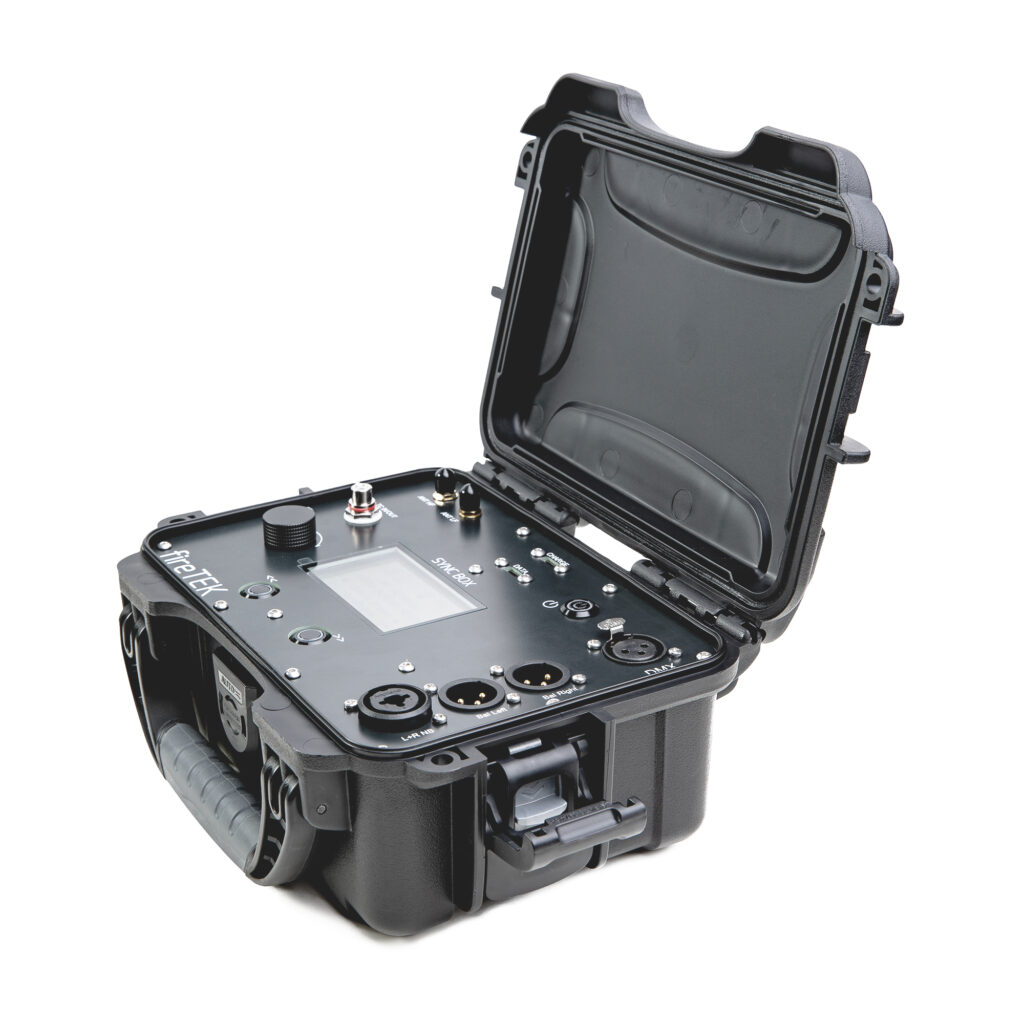

FIRETEK AUDIO SYNC BOX
- FTQ-MSB sync box
- Bi-directional communication; 2.4ghz with up to 30 hops mesh and up to 5km range, 868/915Mhz with 1 hope repeater and up to 10km range (More reliable on interferences)
- XLR 3 pins connection up to 300m. Can act as DMX controller.
- Can be used as a master to control up to 99 FireTEK modules + 9 Music sync boxes
- Monochrome LCD 2,6′ 128*64 with backlight for local testing of all statuses Battery, Wireless, Audioplayer status.
- 2 control buttons + 1 power button + 1 knob with push
- It can be fast and easy extened with an external USB power bank.
Fully working: up to 12 Hours. - – Built in high fidelity audio player, unbalanced stereo 6mm Jack output, Balanced stereo outputs XLR. (File format: wav, 44100@16b or 32b.)

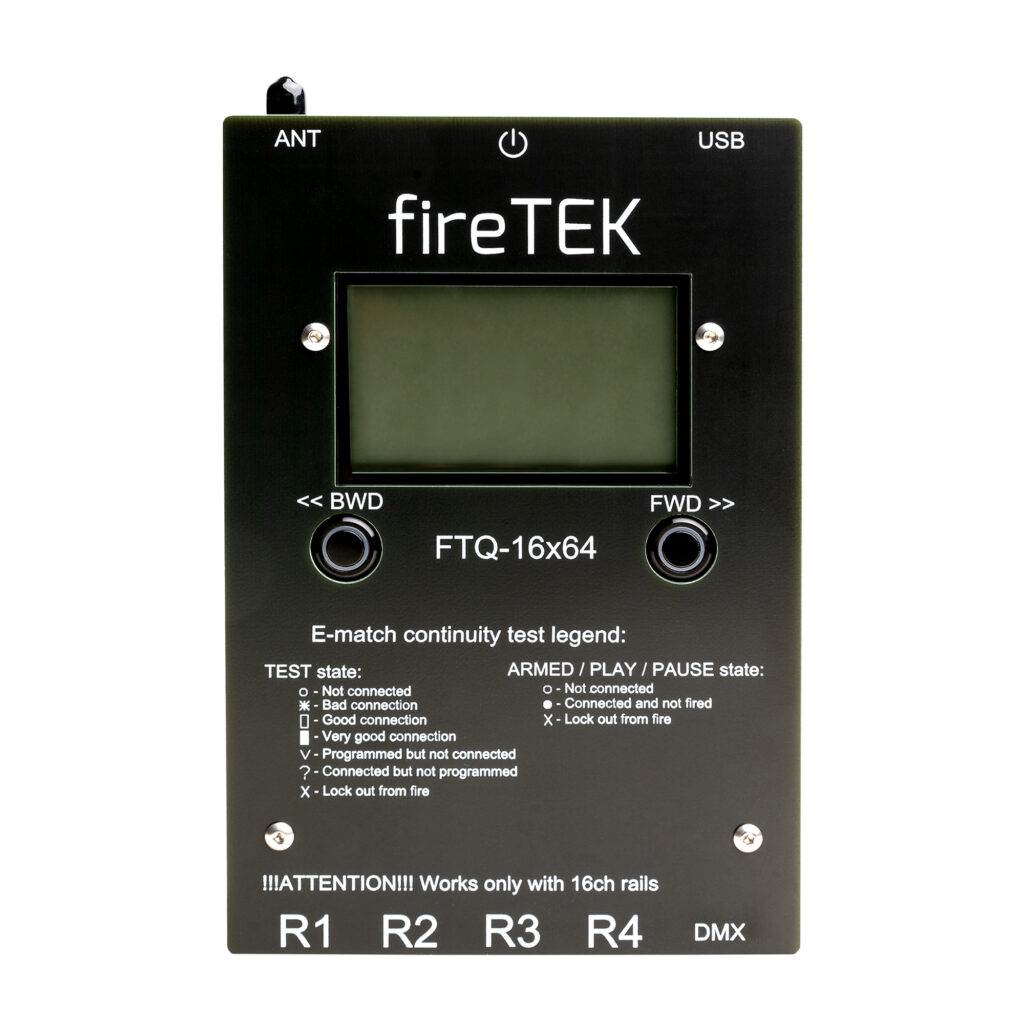

FIRETEK 64 CHANNEL MODULE
- FTX-16X64 Module
- The module can provide audio control with a connection to an Android device with the included fireTEK applications.
- Avaliable in either 2.4Ghz or 868Mhz or with DMX
- Fully working: up to 20 Hours.
With controller powered off: up to 30 hours.
Sleep mode: up to 4 weeks. - Power: up to 20V@10A with high power energy bank store to fire all channels without voltage drop.
In parallel: up to 8 igniters (depends on igniters specifications and UTP cable length and quality).
In series: up to 25 igniters (depends on igniters specifications and UTP cable length and quality).
Firing Resolution: 1ms (1/1000 seconds).
Impulse time: 8 to 50ms. Module measure in real time if the igniters was fired and based on this it automatically adjust the impulse time. Impulse time can be also manual set in script independent for each channel up to 65 seconds.
Firing entire module: All 64 channels can be fired in about 150ms.
Timing limitations for firing: NO limitations; module automatically handles if too many igniters are fired from same module in the same time. - Display: Monochrome LCD 2,6′ 128*64 with backlight for local testing of all statuses Battery, Wireless, igniters connection vs script.
